BAND SAW Ø 330 mm.

Article N°: 1136

Supplier: MEP

Type: SHARK 452-1 SXI EVO

Status: 6.0 New

Remarks:

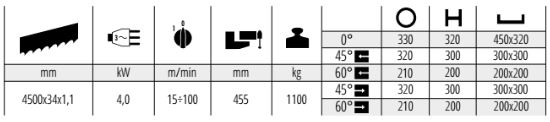

SHARK 452-1 SXI evo, 4500 x 34 x 1.1 mm electro-hydraulic semi-automatic band saw for cutting pipes, profiles and beams up to 450 x 320 mm at 0 °.

- Very versatile machine allowing cuts between 60 ° on the left and 60 ° on the right.

CUTTING CYCLE:

- after positioning the bar, starting the cycle gives rise to the following operations:

vice closing and starting the engine - lowering the head for the execution of the cut - stopping the engine - returning the head - opening the vice.

- DOWN-UP CYCLE: by acting on the SEMIAUTOMATIC cycle, the DOWN push button stops the head and the rotation of the tape at the end of the cut while keeping the vice closed and complete the opening of the vice and the return at the top of the head among the UP push button.


Catalog and technical characteristics: See "Find out more"

At your disposal to advise you and make a detailed offer
